STMicroelectronics VD6283 Hybrid Filter Multispectral Sensor

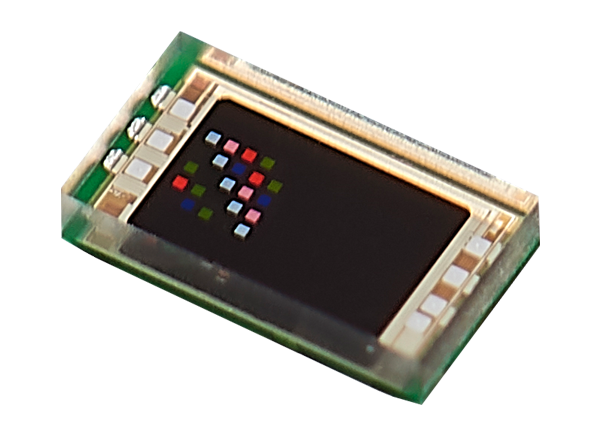

STMicroelectronics VD6283 Hybrid Filter Multispectral Sensor features an individual ADC and a readout for each color channel, ensuring fast and accurate light measurement. The 1.83mm x 1.0mm x 0.55mm sensor utilizes hybrid color filters with precise responses, allowing precise computation of the correlated color temperature (CCT) and Lux information. Ideally, the VD6283 is intended for display brightness management or scene light correction. The STM VD6283 Hybrid Filter Multispectral Sensor extracts light flickering frequencies to avoid "banding effects" on videos or check that they are safe for the human eye via a patented architecture and high-performance photodiode design. The sensor extracts different light flicker waveforms from 100Hz and 2kHz, including LED square signals, that can run flicker operations simultaneously with ALS operations.
Features
- I2C interface up to 1Mbit/s (Fast mode plus)
- Miniature optical module
- 1.83mm x 1.0mm x 0.55mm
- Optical BGA, 6-balls, reflowable package
- Operates with cover glass on top
- ALS operation with 6 independent channels
- Advanced hybrid filters with high photocount response
- Parallel sensing of all channels: red, green, blue, IR, clear, and visible
- Operating conditions: 7mLux to 30kLux (green channel)
- Light flicker extraction
- Innovative readout architecture to extract AC light flicker signal
- From 100Hz to 2kHz frequency detection, sine or square wave
- Software driver provided by ST
- 1.8V power supply
- Low-power consumption
- -30°C to +85°C operating temperature range
Applications
- True tone color-sensing IC for screen brightness adjustment, and white balance color assistance
- Lux and CCT measurement
- Light frequency extraction for flicker correction assistance
Block Diagram
