Vishay / Beyschlag High-Frequency (HF) Thin Film MELF Resistors
Vishay / Beyschlag High-Frequency (HF) Thin-Film MELF Resistors feature low-inductance non-helical trimmed products. These resistors are designed for applications that require more than 10GHz frequency. The MMU 0102/MMB 0207 HF resistors feature a 6.8Ω to 470Ω resistance range and ±2% resistance tolerance. The MMA 0204 HF resistors feature a 1.5Ω to 475Ω resistance range and ±1% resistance tolerance. These high-frequency resistors also feature ±50ppm/K temperature coefficient and -55°C to 155°C operating temperature range. The HF thin-film MELF resistors are RoHS-compliant and come in force-fitted steel caps with intrinsic sulfur resistance. Typical applications include telecommunication equipment and industrial electronics.
Features
- Specialty product for RF applications
- Low-inductance non-helical trimmed product
- Suitable for more than 10GHz frequency
- ±50ppm/K temperature coefficient
- Force-fitted steel caps
- Intrinsic sulfur resistance
- RoHS compliant
- Halogen-free
- Pb-free
Specifications
- MMU 0102 HF:
- 6.8Ω to 470Ω resistance range
- ±2% resistance tolerance
- 0.3W rated dissipation
- MMA 0204 HF:
- 1.5Ω to 475Ω resistance range
- ±1% resistance tolerance
- 0.4W rated dissipation
- MMB 0207 HF:
- 6.8Ω to 470Ω resistance range
- ±2% resistance tolerance
- 1W rated dissipation
Applications
- RF requirements
- Telecommunication equipment
- Industrial electronics

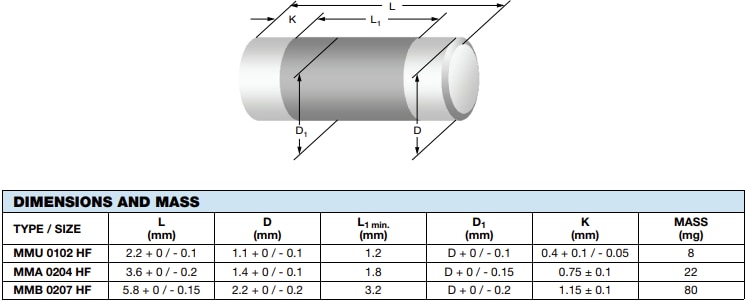

Dimension Diagram
Additional Resources
