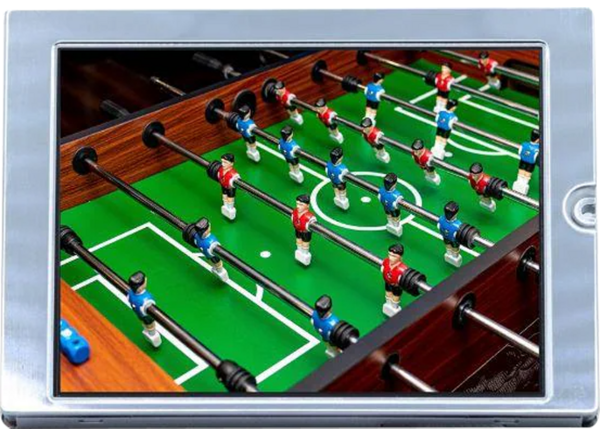

KYOCERA Display TCG057 5.7 Inches TFT Display
KYOCERA Display TCG057 5.7 Inches TFT Display is designed for audio control and office automation devices. This TFT display offers a transmissive color dot matrix type TFT LCD, LED backlight system, and glare low-reflection treatment polarizer. The TCG057 TFT display has a module size of 144mm x 104.8mm x 13mm and 800cd/m2 brightness with the touch panel. This TFT display features a timing controller and a 3.3V input power supply (without a constant current circuit for the LED backlight). The TCG057 TFT display operates at -20°C to 70°C temperature range and 4V supply voltage. This TFT display is ideally used in medical, aerospace, communications infrastructure, and atomic energy control.
Features
- LCD transmissive color dot matrix type TFT
- LED backlight system
- Polarizer glare low-reflection treatment
- Additional circuit - Timing controller, 3.3V input power supply (without constant current circuit for LED backlight)
Specifications
- 100mA LED forward current
- Response time:
- 10ms rise
- 25ms down
- -0.3V to 6V input signal voltage range
- 4V supply voltage
- 80° viewing angle range
- -30°C to 80°C storage temperature range
- -20°C to 70°C operating temperature range
Applications
- Medical
- Aerospace
- Communications infrastructure
- Atomic energy control
- Audio control
- Office automation
- Industrial control
- Home appliances
